EVA-Max Foam Injection Molding Machine

TK-204TC EVA-Max Series

Boots
EVA
Industrial & Creative Use
Midsole
Outsole
Slipper
Contact TienKang
Inquiry

Features Introduction

Platen size increased to 380×750 mm.
Compared to the standard 290×550 mm platen, the size is enlarged by over 35%, offering more mold space for large molds, improving cavity layout flexibility and production efficiency.
Screw diameter increased to φ95 mm with 3500 cc injection volume.
Supports high-volume single-shot injection to fill multiple or large cavities in one cycle, shortening injection time and improving molding stability — ideal for large product manufacturing.
Clamping force upgraded to 350 tons.
The strong clamping force prevents flash or leakage caused by insufficient mold locking, ensuring dimensional accuracy and product integrity under high-pressure injection of heavy materials.
Maximum mold opening stroke: 500 mm.
Offers more operating space, making it easier to remove finished products while reducing operator injury risk and improving mold design flexibility — especially for thick part production.
Safety protection devices.
Equipped with a safety door and hook with visual design, effectively protecting operator safety and meeting workplace safety requirements.

Special Feature

The Versatile Applications of EVA Material:

Ethylene-vinyl acetate copolymer (EVA) has long been widely used in footwear due to its lightweight, softness, and excellent cushioning properties. It is especially valued in athletic and casual shoes, where it plays a key role in providing superior comfort and support in midsoles and insoles. However, the advantages of EVA extend far beyond footwear. Its outstanding barrier properties, water resistance, and UV resistance make it an exceptional material for a wide range of non-footwear products.

EVA injection molding is commonly applied in the fields of sports, outdoor gear, and traffic safety, producing items such as protective pads, bumper wheels, helmet liners, floating balls, surfboards, yoga products, and life-saving floatation devices—all benefiting from EVA’s flexibility and durability. In industrial and electronic packaging, EVA’s shock absorption and pressure resistance make it a valuable protective material for precision instruments and components. EVA is also widely used in everyday items such as laptop bags, backpacks, and shopping baskets, demonstrating its high versatility and broad application potential.

Finished Product

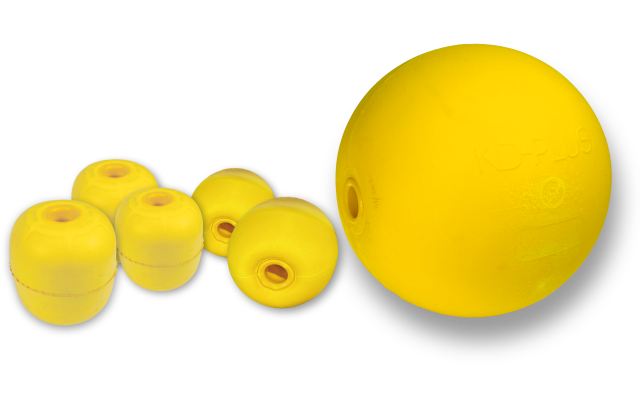

FloatBall_00000

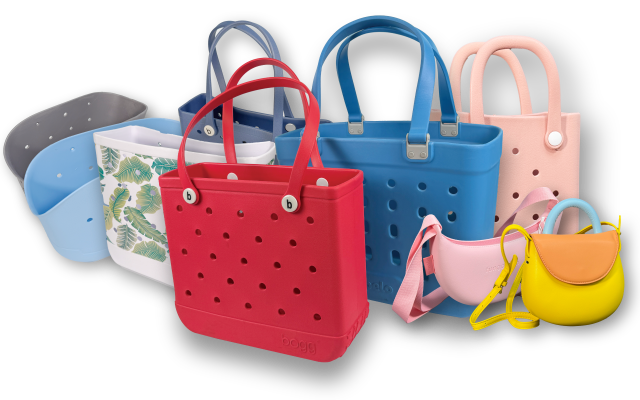

ShoppingBasket_00000

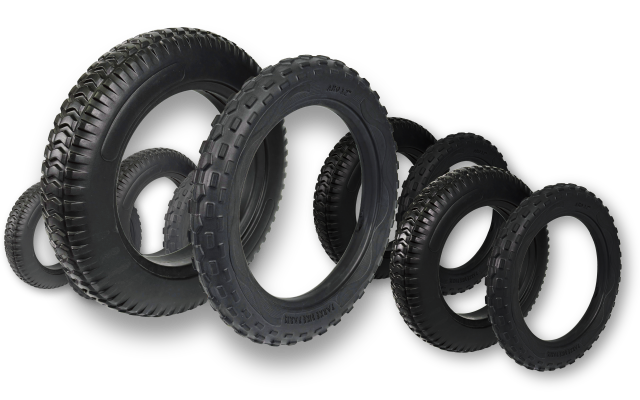

Tire_00000

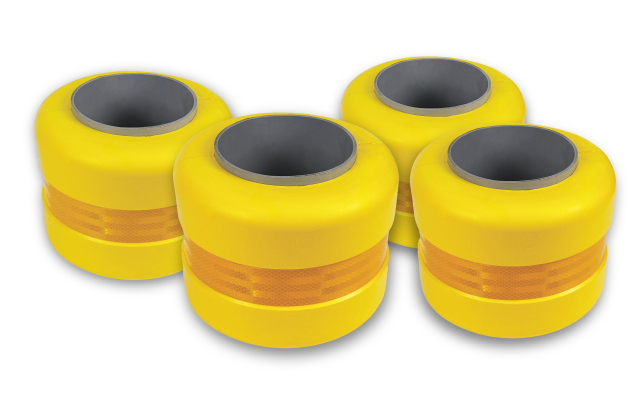

SafetyRoller_00000

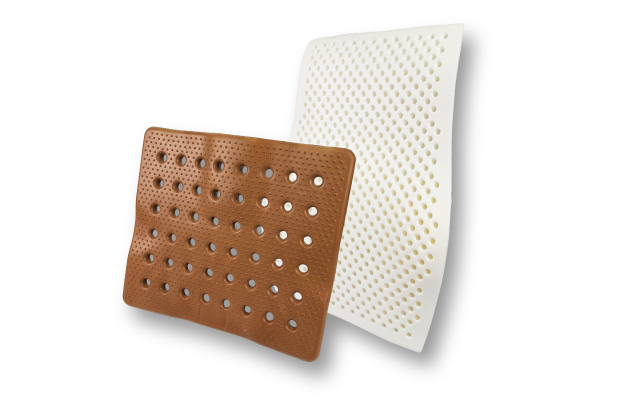

Cushung_00000

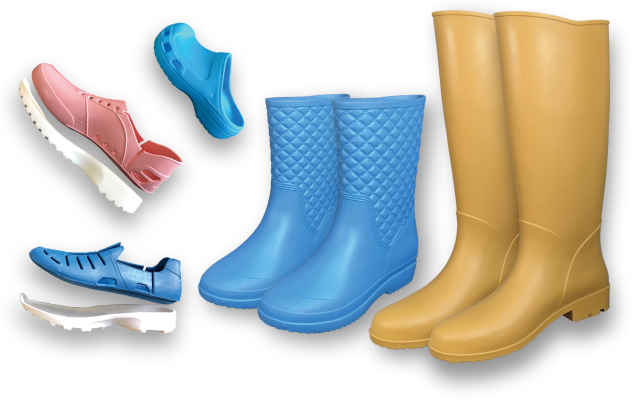

Boots_00000
